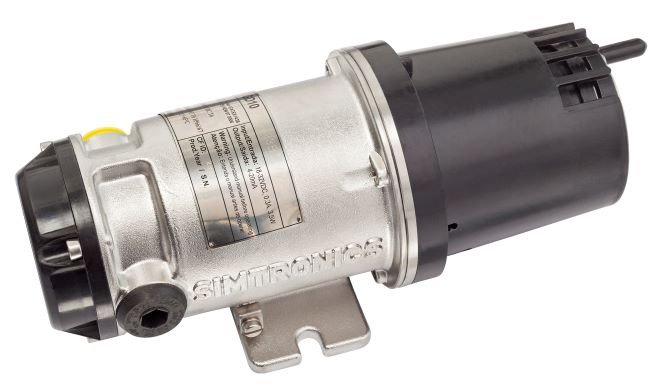

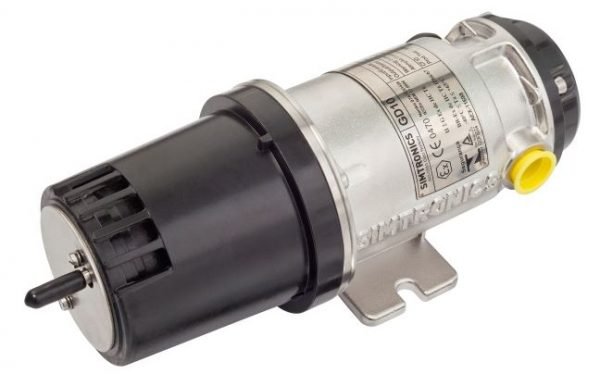

The GD10P-CO2 uses state-of-the-art IR gas measurement to give a fast, reliable response. The GD10P has set the standard for gas detection in the areas of safety, stability and low maintenance.

The GD10P comes with a 5-year warranty. The GD10P-CO2 has been designed with features that provide an effective response to the detection of CO2 in a wide range of industrial environments, from boiler plant rooms to offshore petrochemical installations.

The GD10P-CO2 differs from all other point infrared gas detectors because it utilises silicon-based solid-state sources.

The complete optomechanical design and construction is so stable that an ultra-fast speed of response can be achieved whilst providing unparalleled service life and detector stability, thus saving on maintenance and service costs.

Offering the longest combined detector and IR source warranty on the market. Supplied with worldwide hazardous area approvals. An industry standard HART interface is used for configuration of special fault levels as well as access to extended maintenance data.

Features

• Solid state IR sources (SimSource) for superior long-term performance compared to filament lamps.
• Dual-layer weather protector (No mesh, gauze, hydrophobic filters or sinters = No delay, no failure on demand).
• Low power consumption reduces the load on the UPS.
• Independently heated mirror and lens for high-performance detection in rough environmental conditions.
• The integral termination compartment enables reduced installation time, and the unit is ready out of the box.
• No recalibration is required; it monitors and accounts for all changes in the optical path, thanks to its true dual-path, double-compensation optical design.

Other Versions

• GD10P Combustible gas detector
• The PE model detects flammable gas in large volumes of air

Order Information
