Honeywell OmniPoint Gas Detection Transmitter

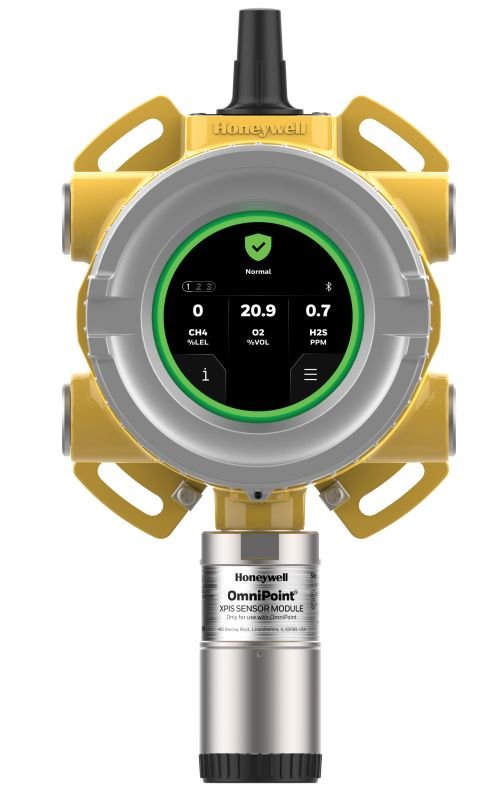

The OmniPoint transmitter is a comprehensive gas detection solution designed to operate in hazardous locations and support multiple sensors in the detection of toxic, oxygen, and flammable gas hazards.
Protecting your workers and your enterprise
OmniPoint utilises multiple sensor technologies to address diverse gas detection challenges across a range of global industries. Full-colour touch-key interface and Bluetooth-enabled operation make setup and maintenance intuitive.

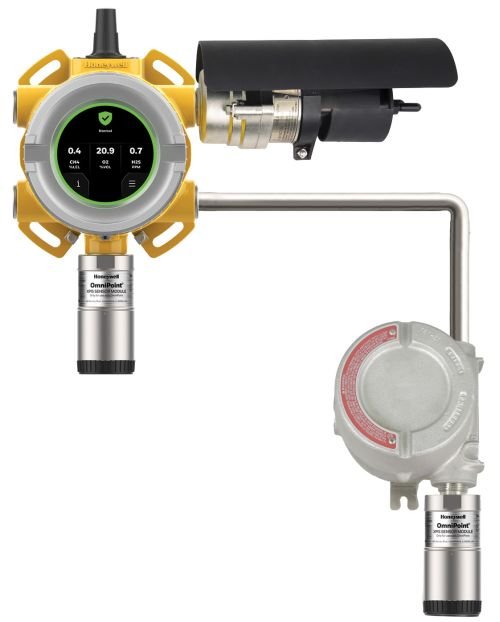

Support for up to three sensors makes OmniPoint both flexible and scalable to meet your safety requirements.
Touch key user interface
- Monitor up to three sensors from the same flexible transmitter.
- Universal electronics module.
- Accepts different sensor inputs and simplifies ordering and stocking.
Typical applications include
- Power generation.
- Hydrogen storage.
- Oil and gas refineries.
- Chemical and petrochemical plants.
- Onshore oil and gas terminals.
- Gas transmission (LNG).
- Utilities and wastewater.
Bluetooth connectivity
- An optional BLE app for configuration and maintenance, with plain text on the full-colour display.
- Information is presented in an easy-to-read, understandable format, with call-to-action instructions.
- No need to refer to the manual.
Global approvals
- European, US and Canadian.
- Compliant with and certified to ATEX, IECEx, UL and CSA standards. Allowing for use in Zone 1, Class I, Division 1 hazardous locations.
Order Information
OmniPoint Product Range
| Instruments | |
|---|---|
| Model | Description |
| OPT-CAT-NNN | OmniPoint Transmitter, Aluminium, 3/4″ |
| OPT-CAM-NNN | OmniPoint Transmitter, Aluminium, M25 |
| OPT-CST-NNN | OmniPoint Transmitter, Stainless Steel, 3/4″ |
| OPT-CSM-NNN | OmniPoint Transmitter, Stainless Steel, M25 |
| OPT-CAT-BNN | OmniPoint Transmitter, Aluminium, 3/4″, Bluetooth |
| OPT-CAM-BNN | OmniPoint Transmitter, Aluminium, M25, Bluetooth |
| OPT-CST-BNN | OmniPoint Transmitter, Stainless Steel, 3/4″, Bluetooth |
| OPT-CSM-BNN | OmniPoint Transmitter, Stainless Steel, M25, Bluetooth |
| OPT-CAT-NNH | OmniPoint Transmitter, Aluminium, 3/4″, Local HART Port |
| OPT-CAM-NNH | OmniPoint Transmitter, Aluminium, M25, Local HART Port |
| OPT-CST-NNH | OmniPoint Transmitter, Stainless Steel, 3/4″, Local HART Port |
| OPT-CSM-NNH | OmniPoint Transmitter, Stainless Steel, M25, Local HART Port |
| OPT-CAT-BNH | OmniPoint Transmitter, Aluminium, 3/4″, Bluetooth, Local HART Port |
| OPT-CAM-BNH | OmniPoint Transmitter, Aluminium, M25, Bluetooth, Local HART Port |
| OPT-CST-BNH | OmniPoint Transmitter, Stainless Steel, 3/4″, Bluetooth, Local HART Port |
| OPT-CSM-BNH | OmniPoint Transmitter, Stainless Steel, M25, Bluetooth, Local HART Port |
| OPT-CAT-BMN | OmniPoint Transmitter, Aluminium, 3/4″, Bluetooth, Modbus |
| OPT-CAM-BMN | OmniPoint Transmitter, Aluminium, M25, Bluetooth, Modbus |
| OPT-CST-BMN | OmniPoint Transmitter, Stainless Steel, 3/4″, Bluetooth, Modbus |
| OPT-CSM-BMN | OmniPoint Transmitter, Stainless Steel, M25, Bluetooth, Modbus |
| OPT-CAT-BMH | OmniPoint Transmitter, Aluminium, 3/4″, Bluetooth, Modbus, Local HART Port |
| OPT-CAM-BMH | OmniPoint Transmitter, Aluminium, M25, Bluetooth, Modbus, Local HART Port |
| OPT-CST-BMH | OmniPoint Transmitter, Stainless Steel, 3/4″, Bluetooth, Modbus, Local HART Port |
| OPT-CSM-BMH | OmniPoint Transmitter, Stainless Steel, M25, Bluetooth, Modbus, Local HART Port |
| OPT-CAT-NMN | OmniPoint Transmitter, Aluminium, 3/4″, Modbus |
| OPT-CAM-NMN | OmniPoint Transmitter, Aluminium, M25, Modbus |
| OPT-CST-NMN | OmniPoint Transmitter, Stainless Steel, 3/4″, Modbus |
| OPT-CSM-NMN | OmniPoint Transmitter, Stainless Steel, M25, Modbus |
| OPT-CAT-NMH | OmniPoint Transmitter, Aluminium, 3/4″, Modbus, Local HART Port |
| OPT-CAM-NMH | OmniPoint Transmitter, Aluminium, M25, Modbus, Local HART Port |
| OPT-CST-NMH | OmniPoint Transmitter, Stainless Steel, 3/4″, Modbus, Local HART Port |
| OPT-CSM-NMH | OmniPoint Transmitter, Stainless Steel, M25, Modbus, Local HART Port |
| Sensor Modules | |
| Model | Description |
| OPT-S1S-T | OmniPoint Sensor Module for Toxic and Oxygen Sensor Cartridges, 3/4″ NPT |
| OPT-S1S-M | OmniPoint Sensor Module for Toxic and Oxygen Sensor Cartridges, M25 |
| OPT-S1X-T | OmniPoint Sensor Module for Catalytic and IR Sensor Cartridges, 3/4″ NPT |
| OPT-S1X-M | OmniPoint Sensor Module for Catalytic and IR Sensor Cartridges, M25 |
| OPT-HART-M | OmniPoint Local HART Module, 3/4″ NPT |
| OPT-HART-T | OmniPoint Local HART Module, M25 |
| Sensor Cartridges | |
| Model | Description |
| OPT-R1S-AM1 | Sensor Cartridge, NH3, 0 to 200 ppm |
| OPT-R1S-AM2 | Sensor Cartridge, NH3, 0 to 1000 ppm |
| OPT-R1S-CO1 | Sensor Cartridge, CO, 0 to 300 ppm |
| OPT-R1S-CL1 | Sensor Cartridge, Cl2, 0 to 5.0 ppm |
| OPT-R1S-HS1 | Sensor Cartridge, H2S, 0 to 15.0 ppm |
| OPT-R1S-HS2 | Sensor Cartridge, H2S, 0 to 100 ppm |
| OPT-R1S-OX1 | Sensor Cartridge, O2, 0 to 25% VOL |
| OPT-R1S-SO1 | Sensor Cartridge, SO2, 0 to 15.0 ppm |
| OPT-R1X-FL1 | Sensor Cartridge, Catalytic CH4 |
| OPT-R1X-FL2 | Sensor Cartridge, Catalytic CH4 |
| OPT-R1X-ME1 | Sensor Cartridge, IR CH4 |
| OPT-R1X-ME2 | Sensor Cartridge, IR CH4 |
| OPT-R1X-PR1 | Sensor Cartridge, IR C3H8 |
| OPT-R1X-PR2 | Sensor Cartridge, IR C3H8 |
| Accessories | |
| Model | Description |
| OPT-PIPE | OmniPoint Pipe Mount Kit |
| OPT-FLOW | OmniPoint Flow Housing |
| OPT-CAL | OmniPoint Calibration Adapter |
| OPT-SUN | OmniPoint Sunshield |
| OPT-WEATHER | OmniPoint Weatherproof Housing |
| REG-0.30 | Regulator (.3 LPM Toxic gases) |
| REG-0.50 | Regulator (.5 LPM Combustible gases) |
| 2430-0021 | 3-Wire Aluminium Junction Box |
| 2441-0022 | 6-Wire Aluminium Junction Box |
| 00780-A-0100 | ATEX/IECEx Junction Box |
| 3021A0400 | OmniPoint Display Module |
SPECIFICATIONS
| Description | The OmniPoint transmitter is a comprehensive gas detection solution designed to operate in hazardous locations and support multiple sensors in the detection of toxic, oxygen, and flammable gas hazards. |
|---|---|
| Material | Enclosure: Five-coat marine finish painted aluminum alloy or 316 stainless steel |
| Weight |
Transmitter (enclosure only): Aluminum alloy: 2.45
kg (5.40 lb). 316 stainless steel: 5.37 kg (11.84
lb) Transmitter with display module: Aluminum alloy: 2.92 kg (6.44 lb). 316 stainless steel: 5.84 kg (12.88 lb) XPIS sensor module with cartridge: 0.80 kg (1.76 lb) XP sensor module with cartridge: 0.69 kg (1.52 lb) |
| Mounting |

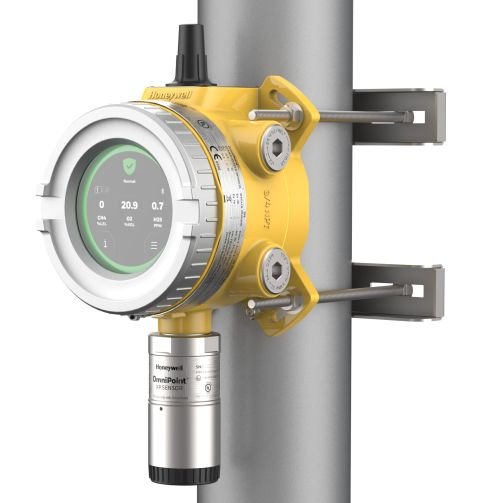

Can be mounted to flat wall surfaces or pipes (2" to
6" diameter). Includes pipe mount bracket, carriage
bolts, nuts, and lock washers. Four cable/conduit ports built into the housing. |
| Cable Entries |
Four conduit/cable entries (two right, two left, one
bottom) M25 or 3/4" NPT One top entry (M22) for optional Bluetooth antenna |
ENVIRONMENTAL
| IP Rating | IP66/IP67 (IEC/EN 60529), NEMA 4X |
|---|---|
| Operating Temperature | -55°C to 75ºC (-67°F to 167°F) |
| Operating Humidity | 0% to 99% RH (non-condensing) |
| Operating Pressure | 90 kPa to 110 kPa |
| Storage Conditions | -55°C to 75°C, 0% to 99% RH (non-condensing) |
ELECTRICAL
| Input Voltage Range | 12–32 Vdc (24 Vdc nominal) for Catalytic/IR & XPIS sensors; 18–32 Vdc for Optima |
|---|---|
| Power Consumption |
Transmitter: Normal 4.5W, Max 8.5W XPIS sensor: Max 0.3W XP sensor: Max 1.7W Max system consumption: 17W (Optima + 2 XP sensors) |
| Visual |
3" high-resolution TFT display Capacitive touch keys LED ring indicator: Green (Normal), Red (Alarm), Yellow (Fault), Blue (Bluetooth) |
| Current Output |
3 configurable 4–20 mA outputs
(sink/source/isolated) Default levels: 1.0 mA (fault), 2.0 mA (warm-up), 3.0 mA (warning), 4–20 mA (normal), 21 mA (over range) Accuracy: ±1% full scale |
HART COMMUNICATION
| Details |
HART 7 supported on 1st 4–20 mA channel Modes: Point-to-point or multi-drop (up to 8) Functions: Gas readings, signal levels, device info, configuration, Output forcing, transmitter & sensor diagnostics |
|---|
RELAYS
| Relay Output |
3 configurable alarm relays + 1 fault relay SPDT contacts Rating: 250VAC 5A / 24VDC 5A (resistive load) |
|---|
CERTIFICATION
| Approvals |
UL, cUL, CSA standards Class I Div 1 Groups A-D; Class II Groups F & G ATEX (Pending) IECEx (Pending) |
|---|---|
| Performance | Flammable Gas Approval: Pending |
WIRELESS COMMUNICATION (BLE OPTIONAL)
| Description | Enables wireless communication with smartphone/tablet |
|---|---|
| Mode | Bluetooth 5.0, point-to-point |
| Distance | Up to 20 meters |
| Functions |
Gas readings, device info, remote calibration,
configuration, output forcing, diagnostics |
MODBUS RTU MODULE (OPTIONAL)
| Description | Isolated RS485 output for Modbus network |
|---|---|
| Connections | RS485+, RS485-, Drain |
| Baud Rate | 2400–57600 (default 9600) |
| Address | 1–247 |
| Nodes | Up to 247 (32 per loop) |
| Protocol | Modbus RTU |
WIRING REQUIREMENTS
| Sensor Wiring | Two-wire up to 300m (984 ft) |
|---|
DISPLAY & INTERFACE
| Instrument | 3" TFT display, LED ring, alphanumeric display, touch keys |
|---|---|
| Remote | Local UI or BLE device via OmniPoint app |
WARRANTY
| Transmitter | 5 years |
|---|---|
| Sensor Cartridge | 1–3 years |
