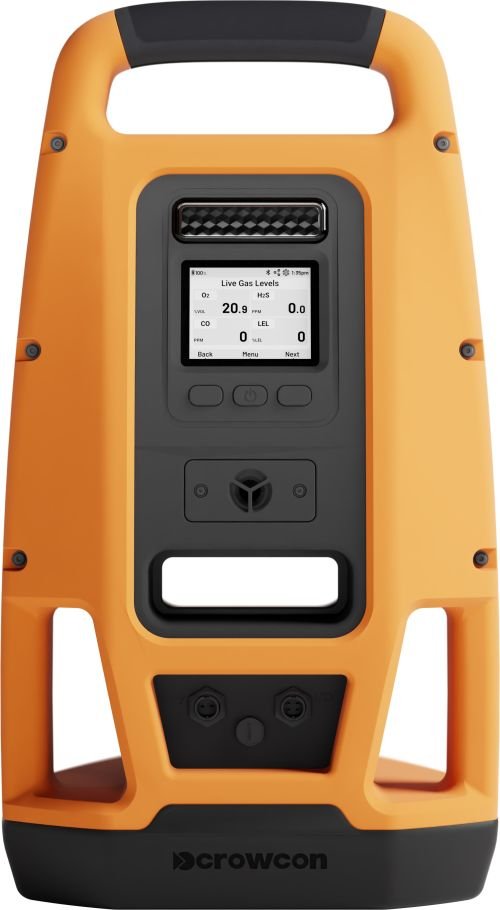

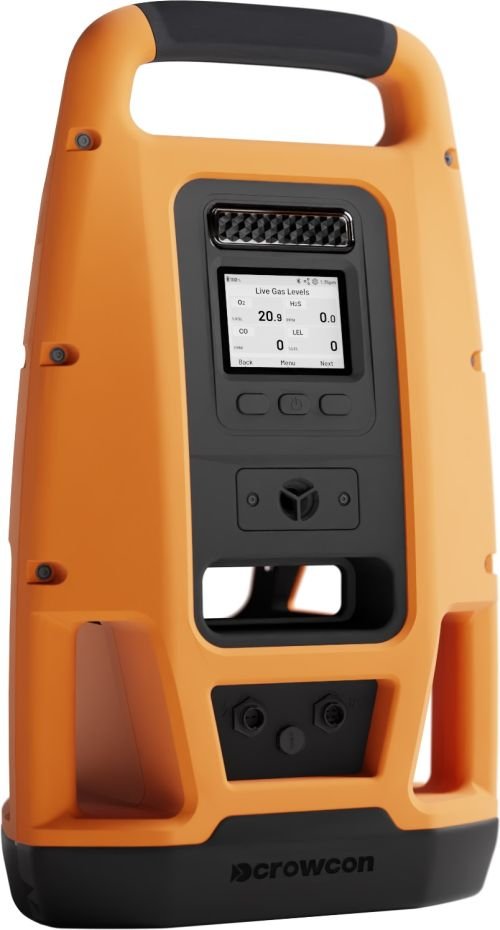

The DetectiveIQ is a rugged, multi-gas detector with industry-leading battery life, modular sensors, and seamless connectivity, providing enhanced safety.
Designed to meet the demands of today’s dynamic and temporary worksites, including turnaround/shutdown procedures, hot work maintenance, confined space entry, and hazardous environments where fixed detectors are impractical.
With an industry-leading battery life, real-time gas detection for up to 7 gases, and a robust design, DetectiveIQ provides continuous protection for your workforce. Seamlessly integrated into Crowcon’s portable ecosystem, it provides a complete safety solution that enhances compliance and operational efficiency
Up to 15 weeks of runtime on a single charge (longer than any area monitor in its class), with quick recharging in just 8 hours, ensuring minimal downtime.
Simultaneously detects up to 7 gases in real time with fast T90 response times of < 20 seconds for key gases. Interchangeable gas sensor slots support electrochemical, PID, infrared, MPS, pellistor and long-life O2 sensors.
| Gas | Range | Resolution |
|---|---|---|
| CH4 | 0-100% LEL | 1% LEL |
| CO | 0-1000 ppm | 1 ppm |
| CO & H2S | 0-1000 ppm (CO) 0-100 ppm (H2S) |
1 ppm |
| CO2 | 0-5% Vol | 0.1% Vol |
| H2S | 0-100 ppm | 0.1 ppm |
| MPS ATEX – 5Pin | 0-100% LEL | 1% LEL |
| MPS UL – 5Pin | 0-100% LEL | 1% LEL |
| O2 | 0-25% Volume | 0.1% Vol |
| Propane | 0-100% LEL | 1% LEL |
| VOC | 0-4000 ppm | 1 ppm |
DetectiveIQ simplifies servicing with minimal parts and screws, making it easy to replace the outer casing, boot, and handles. The pull-in, pull-out modular sensor tray ensures quick maintenance and reduces downtime.
Ideal for perimeter monitoring. Supports fenceline deployment with up to 25 interconnected devices and an optional pumped module for gas sampling up to 30m (100ft).
DetectiveIQ’s built-in alarm passing uses Bluetooth Mesh technology to connect up to 250 devices across 10 groups. Each group of 25 devices covers 2.5 km, with 100m spacing between units.
Rated IP66 and IP68 for water and impact resistance, ensuring reliability in harsh environments. Certified for explosive atmospheres: ATEX/IECEx Zone 0 and CSA C1D1, making it suitable for hazardous areas.
DetectiveIQ’s modern user interface provides real-time gas readings with a dynamic display that updates in response to active channels (1 to 8). Clear, colour-coded alerts shift from green to red, ensuring quick recognition of hazards. Intuitive three-button navigation simplifies operation.
Equipped with a high-volume alarm sounder and bright alert lights to immediately warn workers of gas hazards. Operates effectively in extreme conditions, from -20 to +55°C.
| Size | 298 x 536 x 268mm |
|---|---|
| Weight | 8.1kg |
| Material | ASA & Pebax |
| Response Time (T90) | <20s |
| Alarms | Visual, audible (97dB at 30cm), low/high, TWA, STEL |
| Display | Colour LCD display |
| Data Logging | Up to 8640 event logs |
| Power & Battery | 101+ days |
| Sampling | Up to 30m sampling with optional pumped module |
| Operating Temperature Range | -20 to +55°C / -4 to +131°F |
| Humidity | 0-95% RH |
| Ingress Protection | IP66 and IP68 |
| Certifications |
CSA US: Class I, Division 1, Groups A, B, C, D, Ex
ia da IIC T4 ATEX: Ex II 1G Ex ia da IIC T4 G IECEx: Ex ia da IIC T4 Ga INMETRO: Ex ia da IIC T4 Ga RED/FCC/IC: Wireless |
|---|
| Details |
6 monthly calibrations Bump flow plate; Pumped flow plate |
|---|
| Included | Communication cable; Power cable; Water trap & tubing (pumped device kit) |
|---|
| Connection | Bluetooth & Mesh for connection to Crowcon Connect App |
|---|---|
| Crowcon Connect | Cloud-hosted web application for safety monitoring and asset management, offering real-time alarms, compliance dashboards, location tracking, device configurations, and essential reporting |
| Sensor Types | Electrochemical, IR, MPSTM, Pellistor, PID and Long life O₂ |
|---|
| Available | English |
|---|
| Device | 2 years (sensor warranty separate) |
|---|---|
| Certification Note | *Certification: Pending |
